1. Model: PR10 2. Band Width: 0.5-20MHz 3. Excitation Mode: Pulse-Echo (P-E),Penetration(T-T) 4. Transmitting Area: 60V、110V、150V、200V 5. Weight: 230g 6. Outline Size: 14cm*8.8cm*3cm
Instruction Book Download

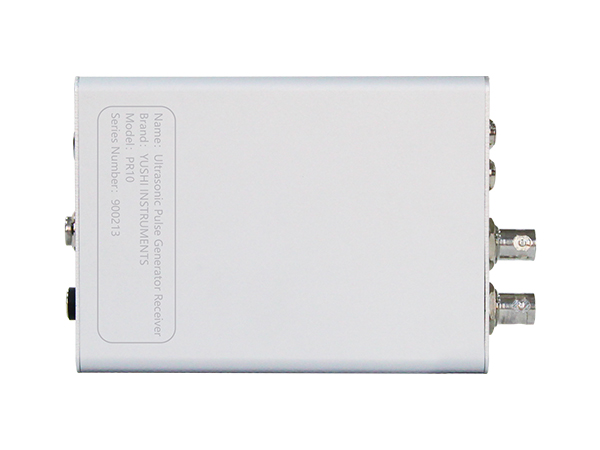

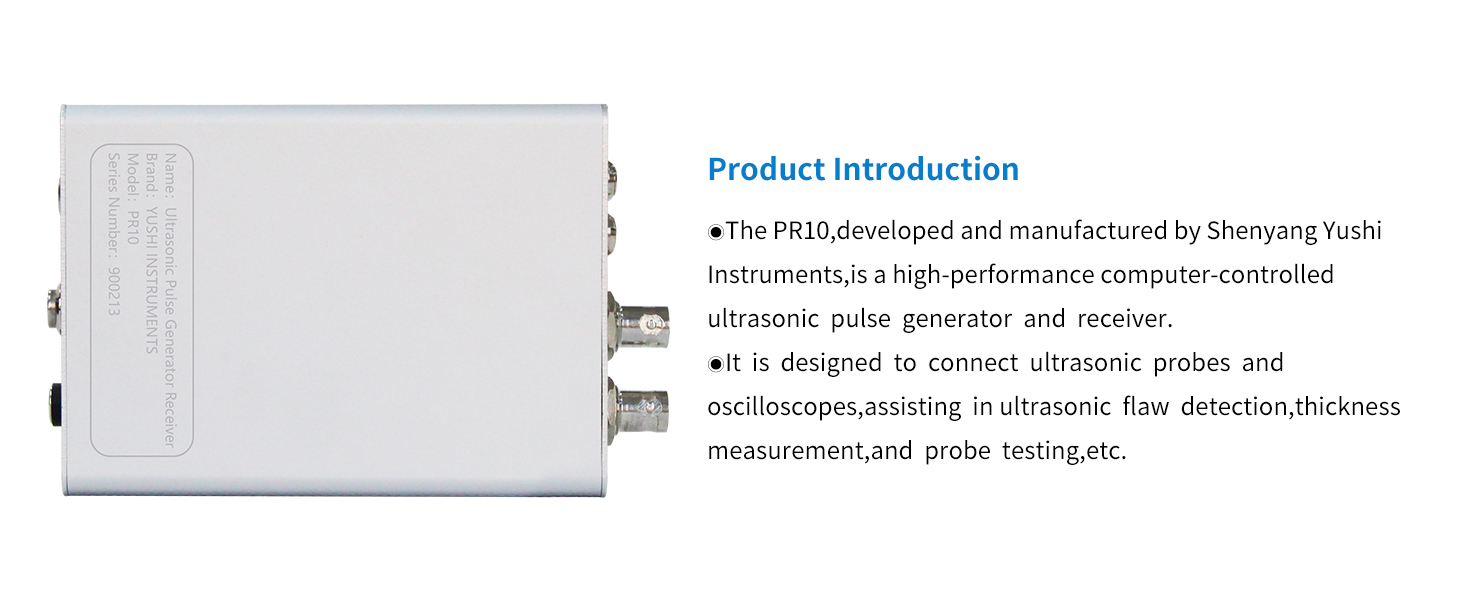

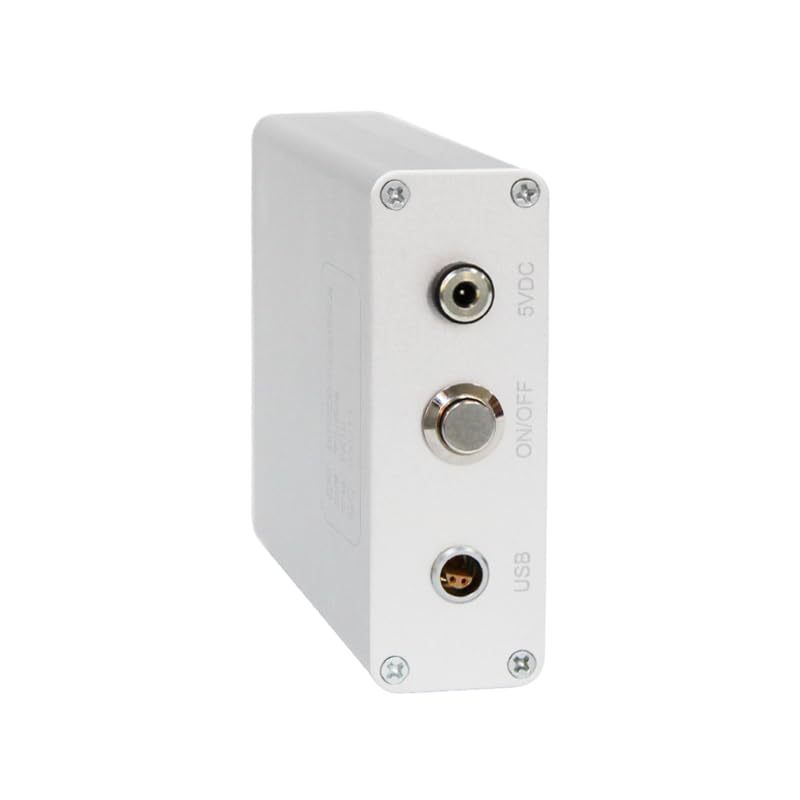

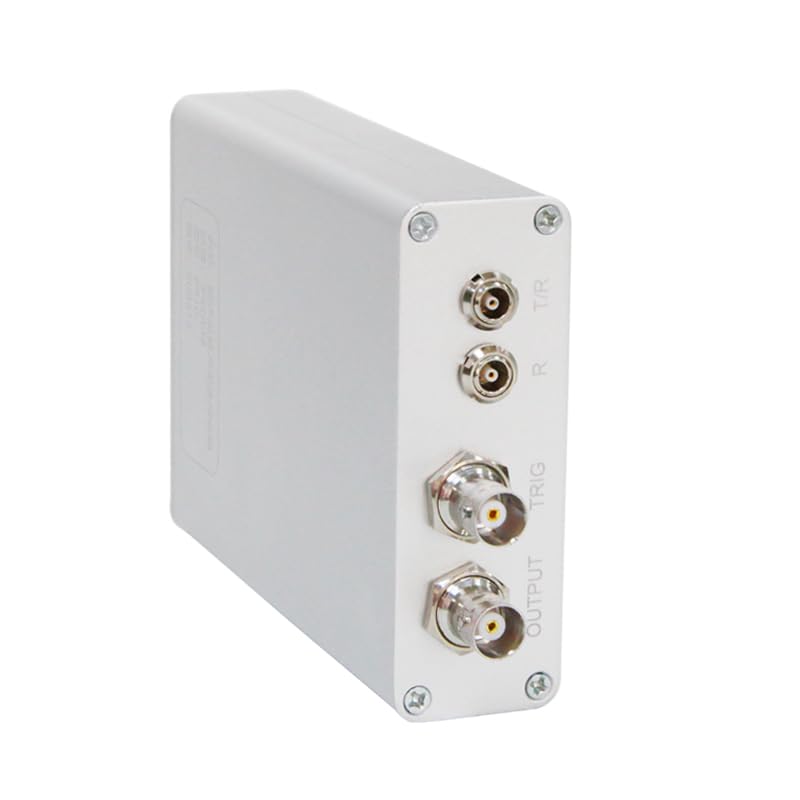

The PR10, developed by YUSHI INSTRUMENTS, is a computer-controlled ultrasonic pulse generator and receiver designed for high-performance applications. It facilitates the connection of ultrasonic probes to oscilloscopes, aiding in ultrasonic flaw detection, thickness measurement, probe inspection, and more. This device is widely utilized in non-destructive testing, material analysis, and various other fields.

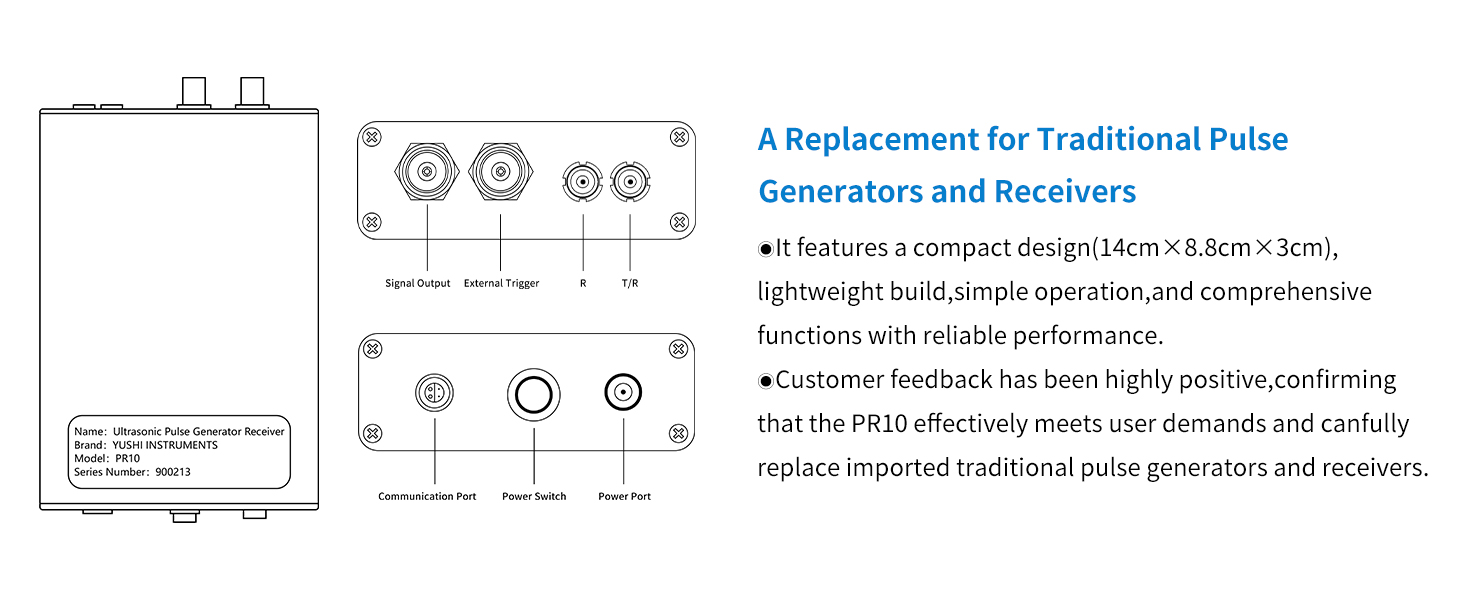

Compact and Lightweight: With dimensions of 14cm × 8.8cm × 3cm and weighing only 230g, the PR10 is portable and easy to handle.

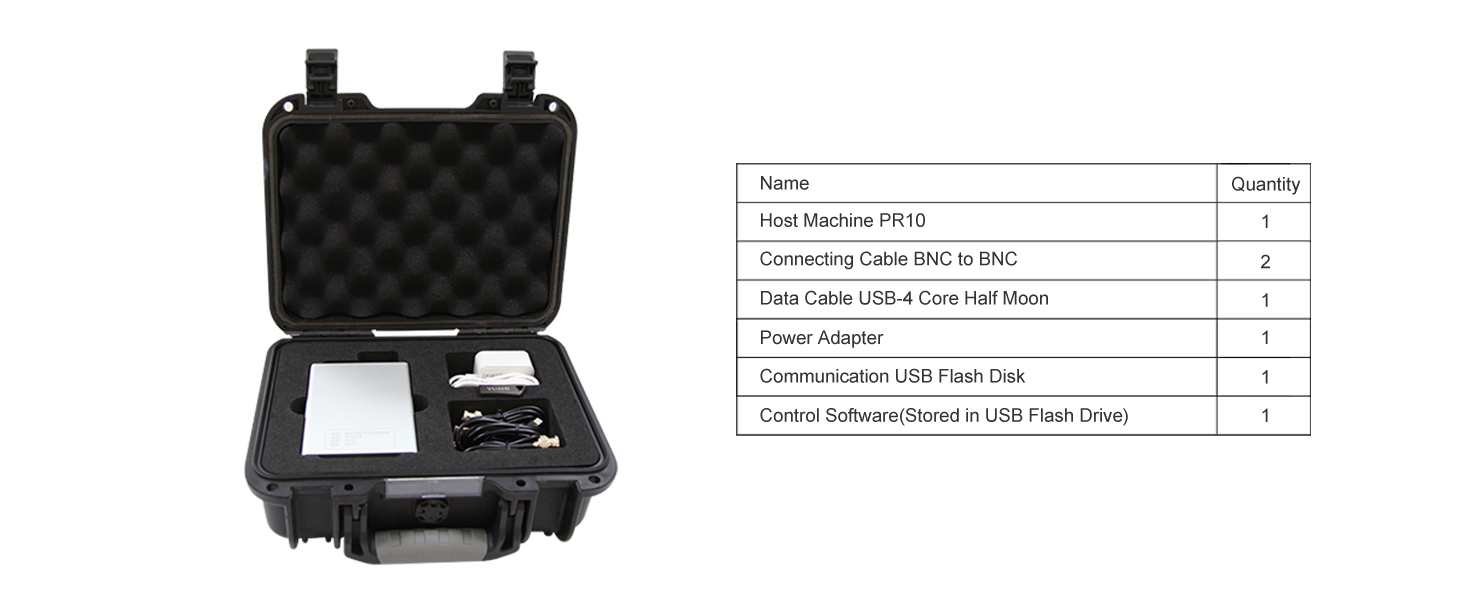

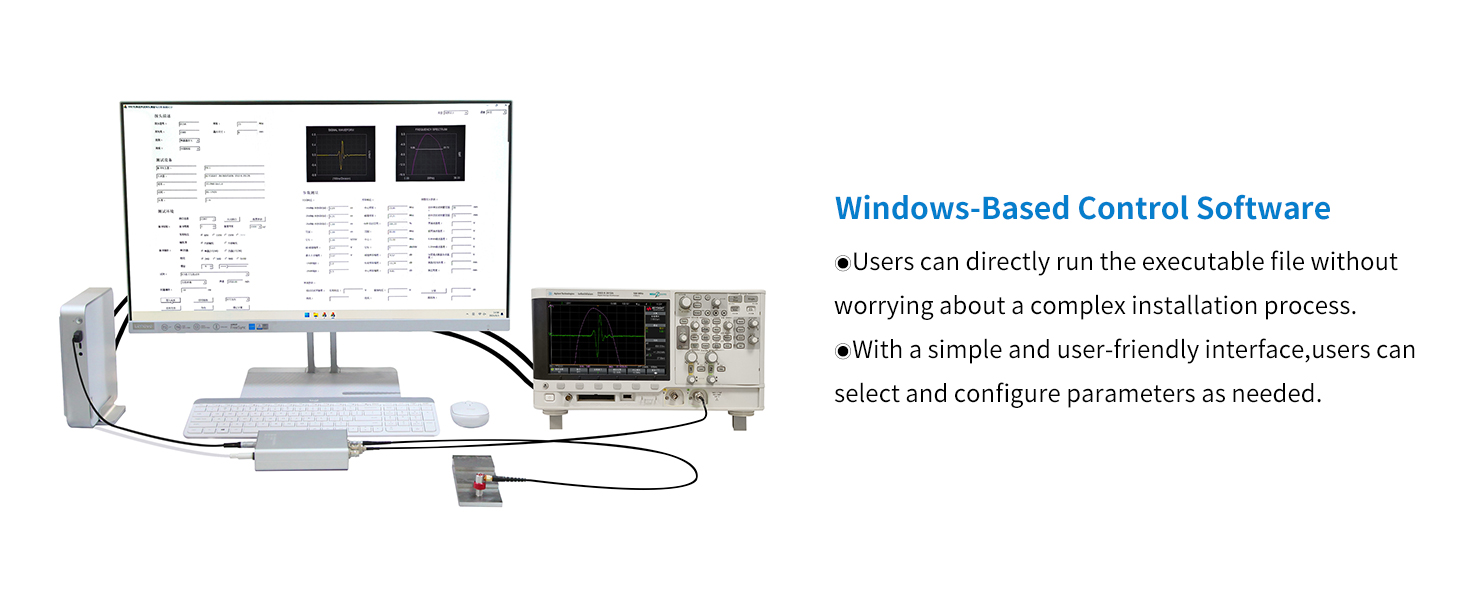

User-Friendly Software: The Windows-based control software is straightforward to operate, requiring no additional installation or configuration. Users can directly run the executable file and save parameter settings for future use.
Open SDK: The open Software Development Kit (SDK) allows users to develop custom applications on various mainstream Windows systems.
Cost-Effective: The PR10 offers high performance at an affordable price, making it an excellent alternative to traditional imported devices.

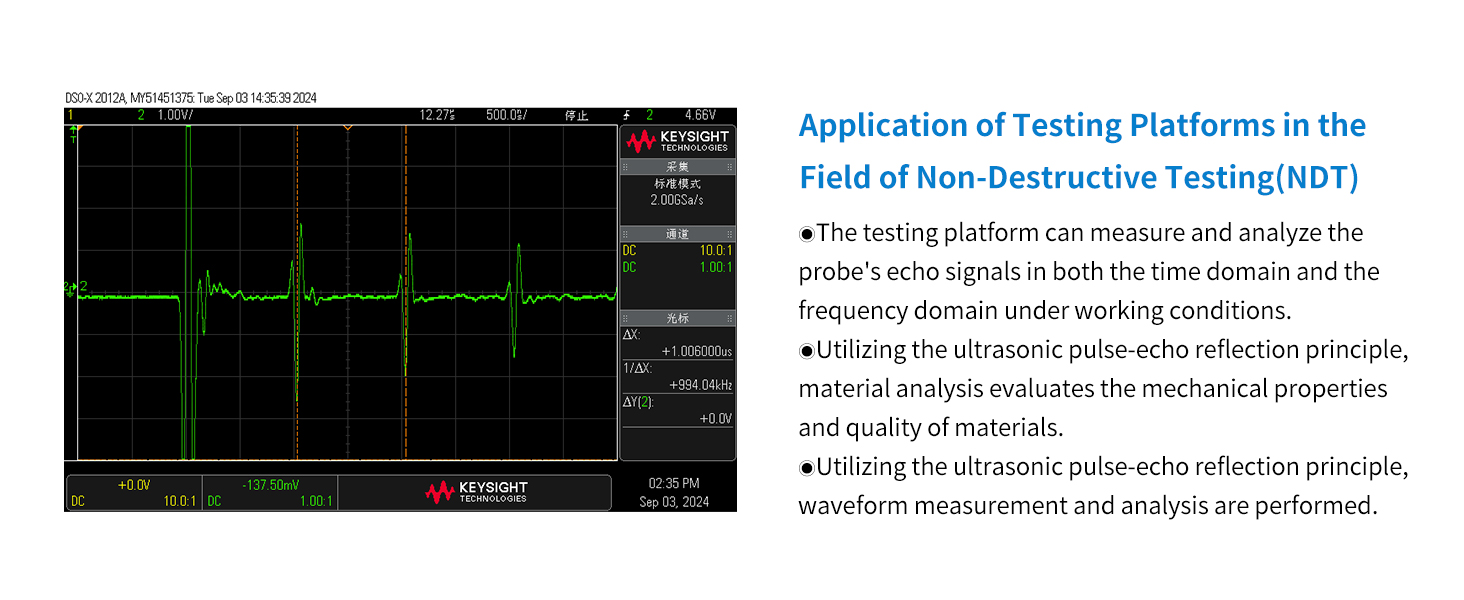

Probe Performance Testing: Evaluate the time-domain and frequency-domain responses of ultrasonic probes.
Ultrasonic Flaw Detection and Thickness Measurement: Detect defects and measure material thickness based on ultrasonic pulse reflection principles.
Material Analysis: Assess mechanical properties and quality of materials by measuring ultrasonic wave propagation speed.
| Transmitting Area-Voltage | 60V、110V、150V、200V |
| Transmitting Area-Pulse Width | 1~40(one time is approximately 28ns) |
| Transmit Area-Repetition Rate | 4Hz、8Hz、16Hz、20Hz、100Hz、500Hz、1kHz、2kHz |
| Transmit Area-Trigger Source | Internal Trigger,External Trigger |
| Receiving-Single/Dual Crystal | Single Crystal(1T/1R),Dual Crystal(1T/2R) |
| Receiving Area-Damping | 34Ω、502、902、510Ω |
| Receiving Area-Gain | -4dB~55dB |
| Pulse Type | Negative Peaking Pulse/Square Wave Pulse |
| Rise Time | Generally between 4.5-8.5ns,the damping will reach 20ns when it is 510Ω |
| Fall Time | Generally Between 3.5-6.5ns |
| Pulse Width | One time pulse width is approximately 28ns |
| Band Width | 0.5-20MHz |
| Excitation Mode | Pulse-Echo (P-E),Penetration(T-T) |
| Repetition Frequency | Internal Trigger:4Hz-2kHz;External Trigger:0-20kHz |
| External Trigger | Rising Edge Trigger;Trigger Voltage:3.3V |
