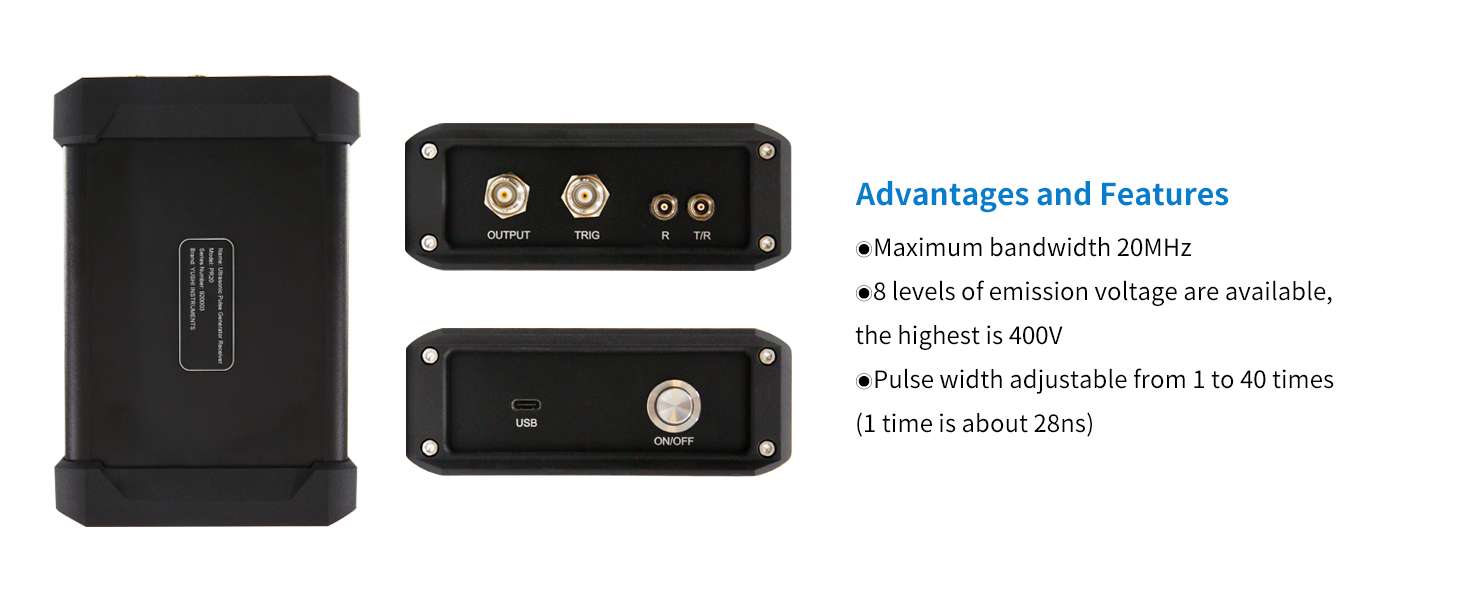

Model: PR20/ Features: 1. Maximum bandwidth 20MHz 2. 8 levels of emission voltage are available, the highest is 400V 3. Pulse width adjustable from 1 to 40 times (1 time is about 28ns)
Instruction Book Download

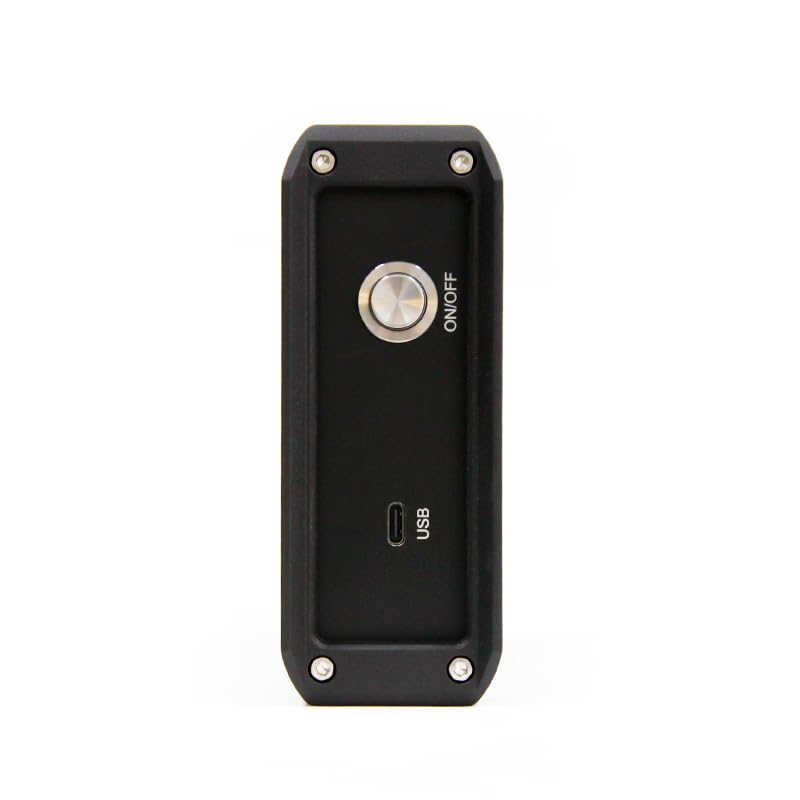

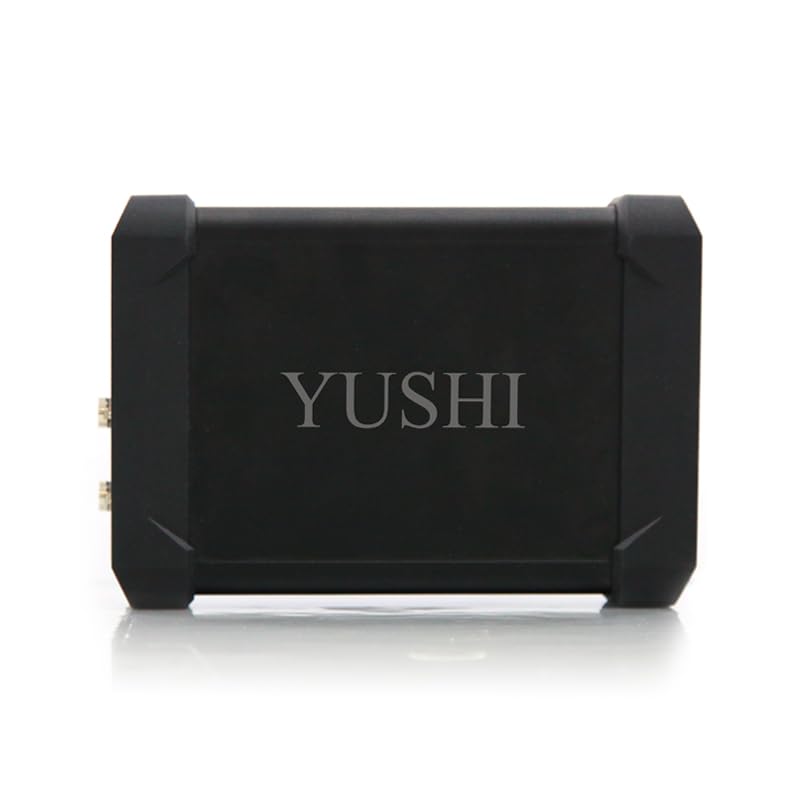

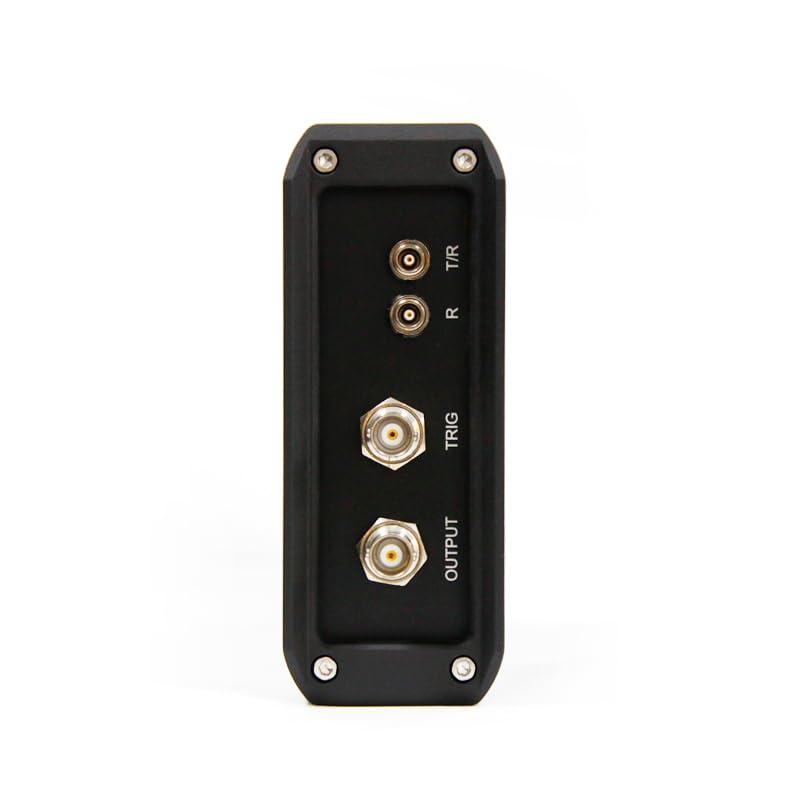

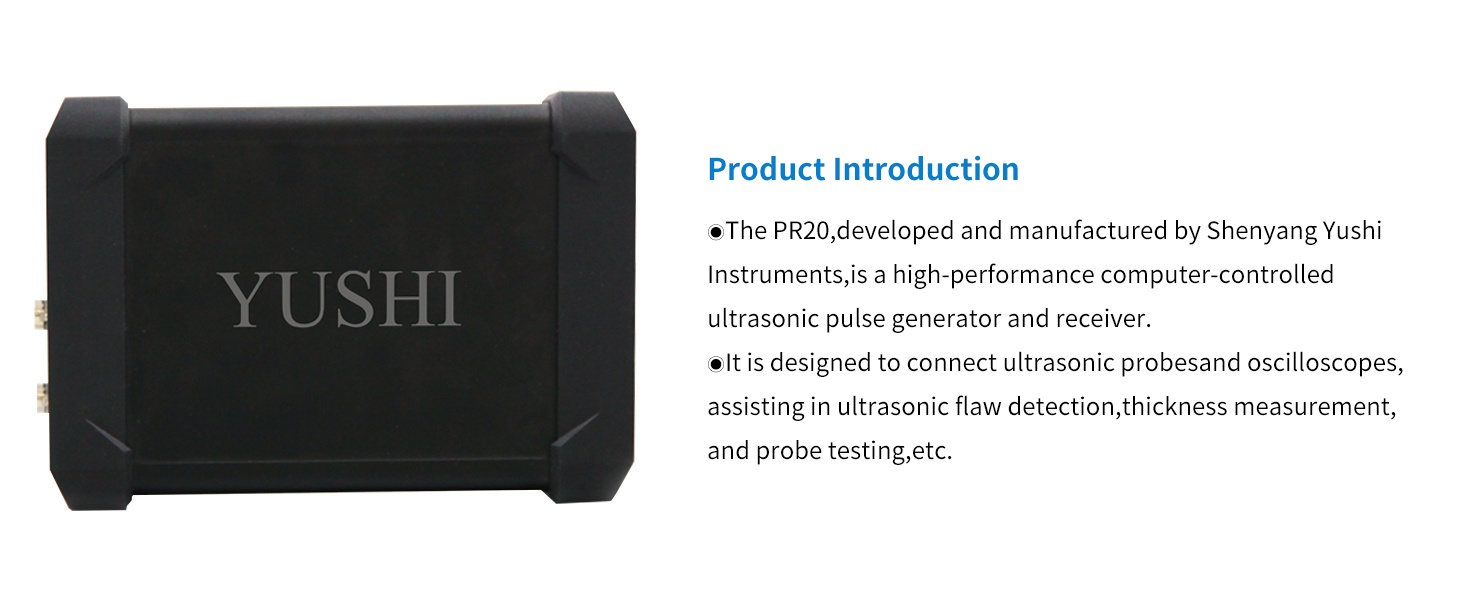

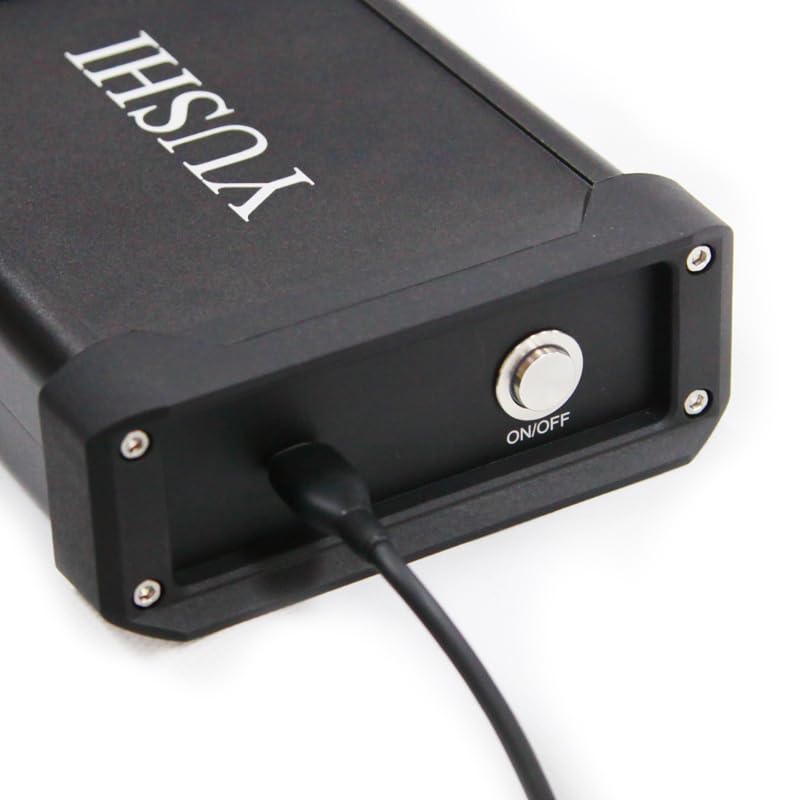

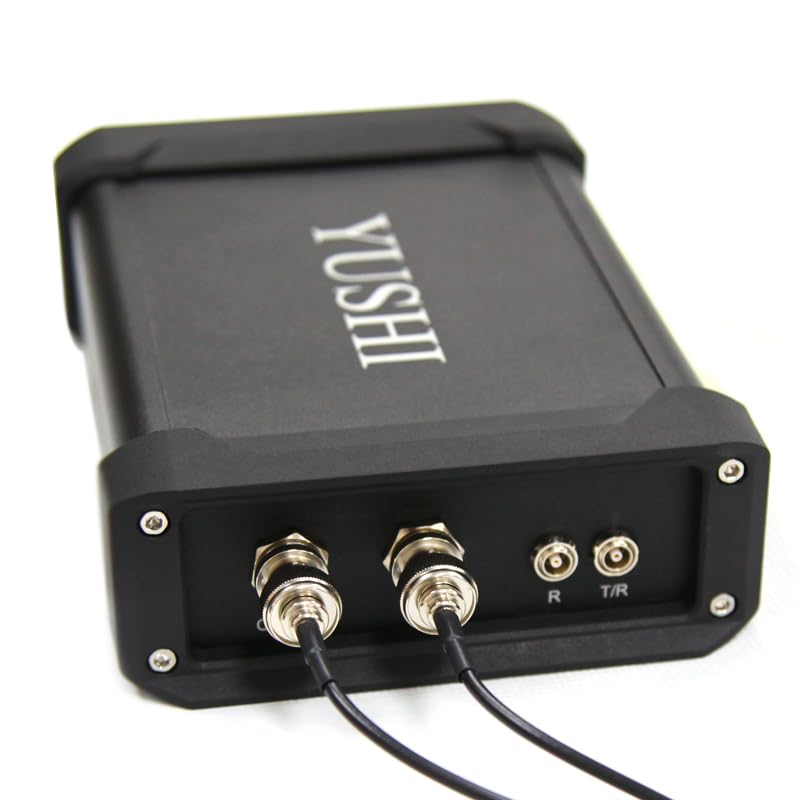

The PR20, developed and manufactured by Shenyang Yushi Instruments, is a high-performance, computer-controlled ultrasonic pulse generator and receiver. This device is designed to connect to a computer and an oscilloscope, and it is mainly used in applications such as:
Ultrasonic flaw detection
Thickness measurement
Probe testing
Material analysis
Non-destructive testing (NDT)

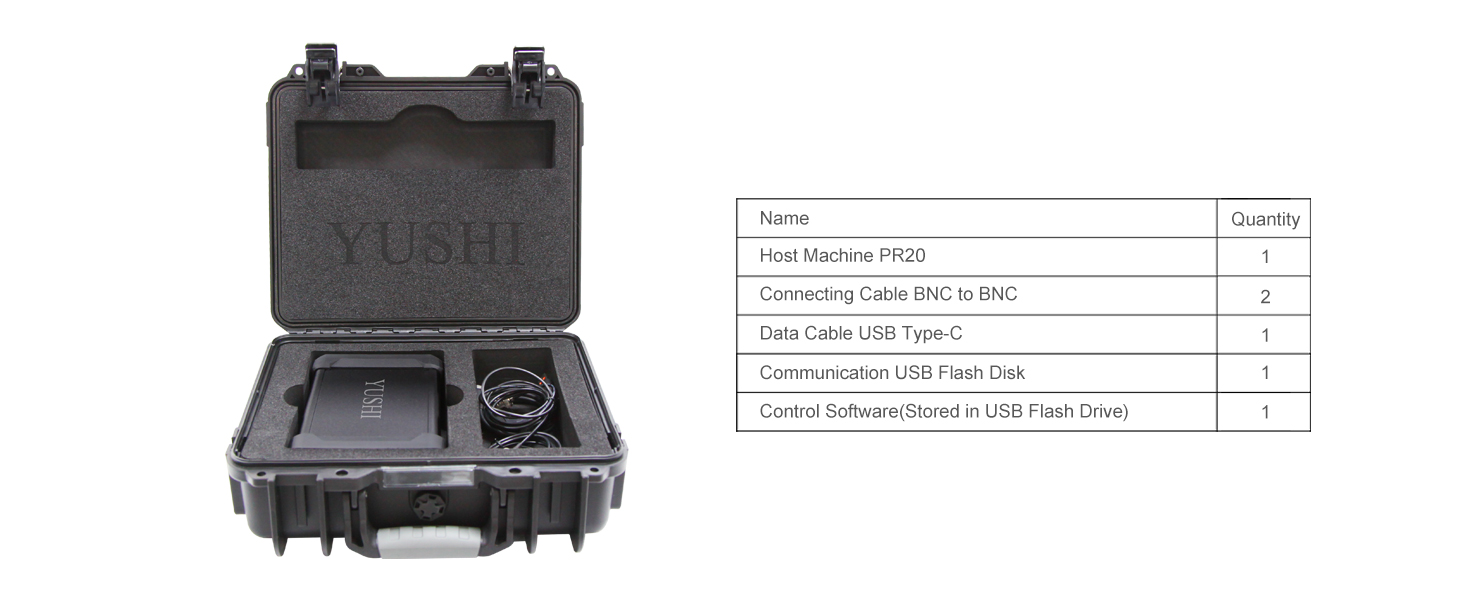

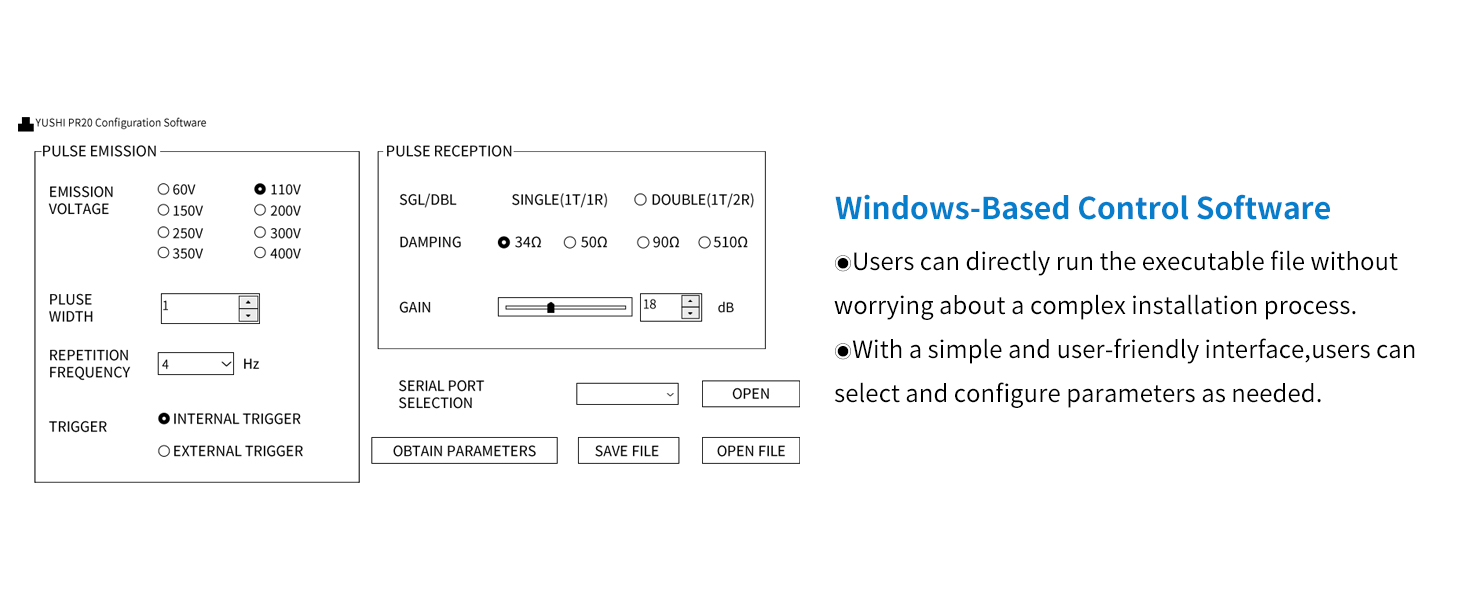

The PR20 includes Windows-based control software, which enables users to:
Select trigger sources
Adjust transmit voltage
Set repetition frequency
Control pulse width
Switch between single-crystal and dual-crystal modes
Adjust damping and gain
An open SDK software package is also provided, allowing users to develop custom applications for various mainstream Windows systems.
Damping Control: Multiple levels adjustable
Transmit Modes: Supports Transmit-Receive (TR) mode and Pulse-Echo mode
Repetition Frequency (Internal Trigger): 8 levels adjustable (4Hz–2kHz)
Pulse Width: Adjustable from 1× to 40× (one time ≈ 28 ns)
Transmitting Voltage: 8 levels adjustable, up to 400V max
Maximum Bandwidth: 20 MHz
Receiving Gain Range: 60 dB
Ultrasonic probe testing and calibration
Thickness measurement
Flaw detection in materials
Materials research and analysis
Laboratory and industrial ultrasonic NDT
| Transmitting Area-Voltage | 60V、110V、150V、200V、250V、300V、350V、400V |
| Transmitting Area-Pulse Width | 1~40(one time is approximately 28ns) |
| Transmit Area-Repetition Rate | 4Hz、8Hz、16Hz、20Hz、100Hz、500Hz、1kHz、2kHz |
| Transmit Area-Trigger Source | Internal Trigger,External Trigger |
| Receiving-Single/Dual Crystal | Single Crystal(1T/1R),Dual Crystal(1T/2R) |
| Receiving Area-Damping | 34Ω、502、902、510Ω |
| Receiving Area-Gain | 0dB~60dB |
| Pulse Type | Negative Peaking Pulse/Square Wave Pulse |
| Rise Time | Generally between 2.0-7.5ns,the damping will reach 20ns when it is 510Ω |
| Fall Time | Generally Between 2.8ns |
| Pulse Width | One time pulse width is approximately 28ns |
| Band Width | 0.5-20MHz |
| Excitation Mode | Pulse-Echo (P-E),Penetration(T-T) |
| Repetition Frequency | Internal Trigger:4Hz-2kHz;External Trigger:0-20kHz |
| External Trigger | Rising Edge Trigger;Trigger Voltage:3.3V |
